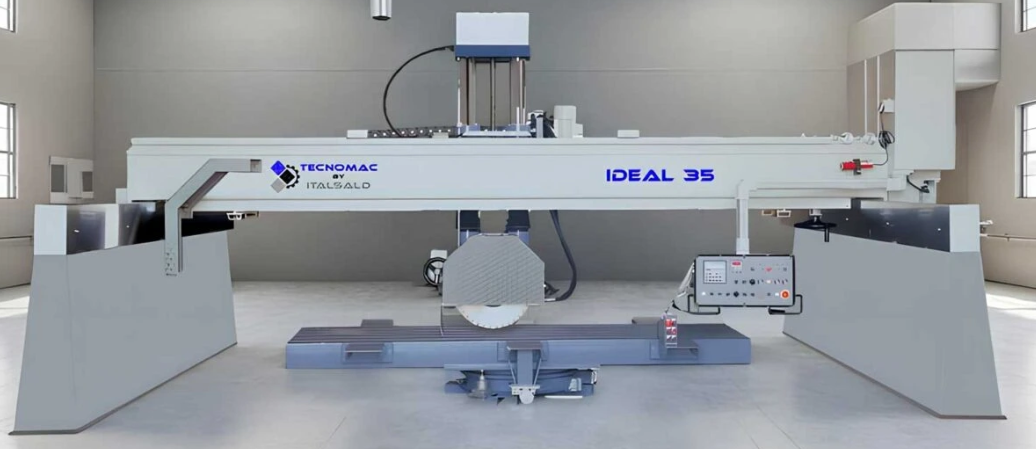

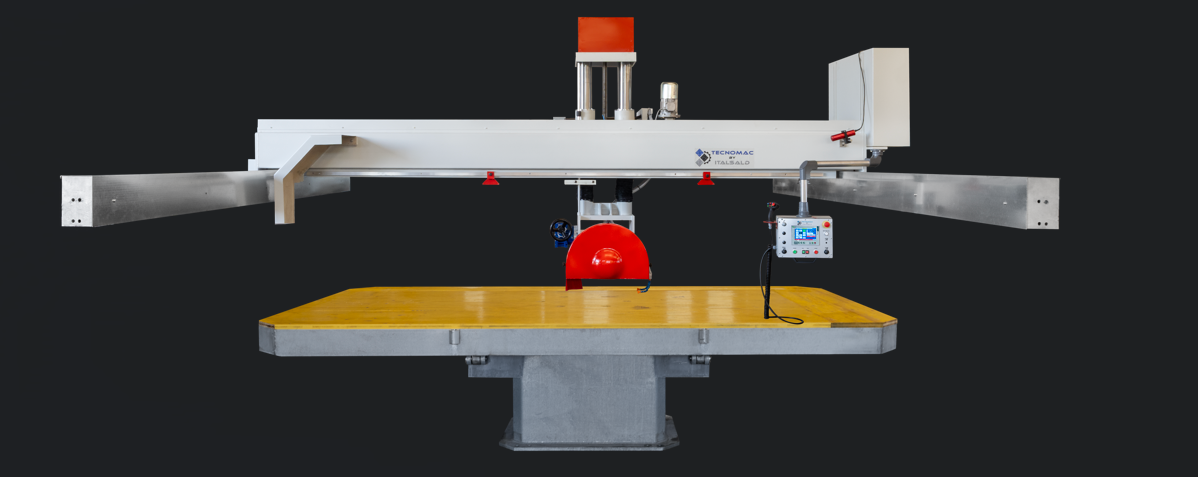

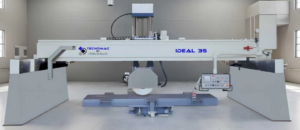

IDEAL 35
The IDEAL 35 bridge saw, designed by Tecnomac by Italsald, combines robustness, precision, and ease of use, making it the ideal solution for any stone-processing workshop.
The machine is built with a high-strength steel structure and a double-beam bridge that runs on two rails by means of oil-bath roller systems protected by stainless-steel guards, ensuring long-term stability and reliability.
It is equipped with a 20 HP (15 kW) blade motor mounted on a support with cast-iron oil-bath guides, guaranteeing smooth and precise movements. Bridge adjustment for the various cutting dimensions is carried out via a handwheel with manual locking, assisted by a resettable digital display that shows horizontal and vertical measurements with accuracy up to 1/10 of a millimeter.
The IDEAL 35 offers a cutting capacity of up to 3500 × 3500 mm, with electric movements managed by electronic inverters to ensure smooth and uniform feed rates. Completing the setup is a robust steel worktable rotating on a slewing ring, with manual locking at 0° and 90°, enhancing the machine’s versatility during cutting operations.
The machine is built with a high-strength steel structure and a double-beam bridge that runs on two rails by means of oil-bath roller systems protected by stainless-steel guards, ensuring long-term stability and reliability.
It is equipped with a 20 HP (15 kW) blade motor mounted on a support with cast-iron oil-bath guides, guaranteeing smooth and precise movements. Bridge adjustment for the various cutting dimensions is carried out via a handwheel with manual locking, assisted by a resettable digital display that shows horizontal and vertical measurements with accuracy up to 1/10 of a millimeter.
The IDEAL 35 offers a cutting capacity of up to 3500 × 3500 mm, with electric movements managed by electronic inverters to ensure smooth and uniform feed rates. Completing the setup is a robust steel worktable rotating on a slewing ring, with manual locking at 0° and 90°, enhancing the machine’s versatility during cutting operations.
